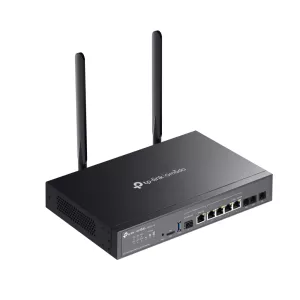

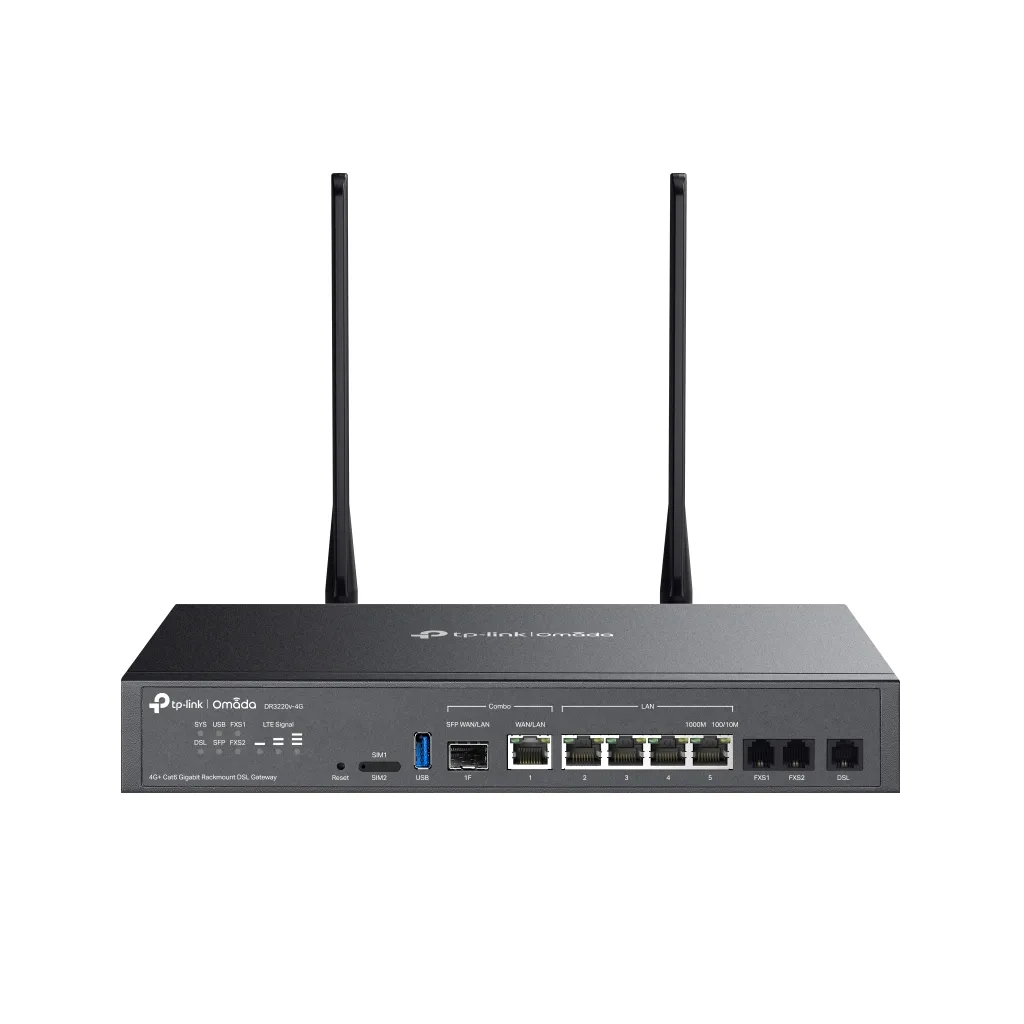

OMADA DR3220v-4G, 4 Port, 4G+Cat6 2,4Ghz, 1 Combo SFP Port, 2 FXS Port, Sim Yuvalı, Gigabit Rackmount DSL Gateway

OMADA DR3220v-4G, 4 Port, 4G+Cat6 2,4Ghz, 1 Combo SFP Port, 2 FXS Port, Sim Yuvalı, Gigabit Rackmount DSL Gateway

Name: OMADA DR3220v-4G, 4 Port, 4G+Cat6 2,4Ghz, 1 Combo SFP Port, 2 FXS Port, Sim Yuvalı, Gigabit Rackmount DSL Gateway
Brand: Omada
SKU: LOC-1720000322
Price: 16060.71 TRY
Availability: OutOfStock

(0 değerlendirme)

Omada

markasının tüm ürünleri için tıklayınız.

STOK KODU :

LOC-1720000322

Ağ Modem Access Point - Router

Satış Fiyatı:

16.060,71₺

Havale Fiyatı - %5

15.257,67 ₺

Tek Çekim Fiyatı

16.060,71 ₺

Döviz Karşılığı

324,81 $

🏷️ Ürün fiyatlarına K.D.V. dahildir.

Tükendi

Hızlı Kargo

Güvenli Ödeme

Teknik Destek

İade Garantisi

SSL

VISA

MasterCard

3D Secure

Ürün Açıklaması

GVENLİK
Access Control	Source/Destination IP Based Access Control
Filtreleme	• Web Group Filtering^ • URL Filtering • Web Security^
ARP Denetleme	• Sending GARP Packets • ARP Scanning^** • IP-MAC Binding
Saldırı Koruması	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

DONANIM ZELLİKLERİ
Arabirim	• 1 Combo Gigabit SFP/RJ45 Port (1 SFP WAN/LAN Port + 1 WAN/LAN Port) • 4 × RJ45 Gigabit LAN Ports • 1 DSL Port • 2 FXS Ports
Buton	Reset Button
G Kaynağı	100-240V/50-60Hz 0.6A
Slot	1*USB 3.0 (supports USB LTE dongle and USB Storage)
Flash	256MB NAND
DRAM	512MB DDR4
Boyutlar ( W X D X H )	11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) (Antenna dimensions not included)
Anten	LTE: Two 3dBi omnidirectional detachable antennas
SIM Slotu	1 Dual-SIM Nano SIM slot (4G+ Cat6)
Montaj	Desktop/ Rack-mounting
Maks. G Tketimi	• 8.55 W (No Link) • 24.4 W (Full load + USB )

PERFORMANS
GRE	• Unencrypted: 491.9Mbps • Encrypted: 244.3Mbps
WireGuard VPN	290Mbps
Eşzamanlı Oturum	150,000
New Sessions /Second	4,050
NAT (Static IP)	937.2 Mbps/936.1Mbps
NAT(DHCP)	945.8 Mbps /940.6Mbps
NAT(PPPoE)	942.9 Mbps/942.9Mbps
NAT (L2TP)	837.4 Mbps / 881.5Mbps
NAT (PPTP)	803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 526.6Mbps • ESP-SHA256-AES256: 543.3Mbps • ESP-SHA384-AES256: 549.0Mbps • ESP-SHA512-AES256: 561.7Mbps
OpenVPN	129.3Mbps
L2TP VPN Throughput	Unencrypted: 909.4 Mbps Encrypted: 494.9Mbps
PPTP VPN Throughput	Unencrypted: 897.5 Mbps Encrypted: 190.8 Mbps
66 Byte Packet Forwarding Rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81274 pps/ 91275 pps

TEMEL FOKSİYONLAR
WAN Bağlantı Tr	• Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
MAC Klon	Modify WAN Address
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

GELİŞMİŞ FONKSİYONLAR
Bandwidth Kontrol	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering^** • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-based Session Limit

VPN
GRE	Only in Standalone Mode
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)^§ • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)^§ • 50 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (5)^§ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	✔

YNETİM
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of Omada Controller.
Servis	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Bakım	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize1 • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support • TR-069 (data models of TR-098 and TR-181 are supported)
Zero-Touch Provisioning	Yes. Require the use of Omada Controller.

OTHER

Network Services Enabled by Default

Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
_____________________________________________________
VOIP Server
Monitor SIP messages
• Port: 5060 Protocol: UDP
_____________________________________________________
DHCP Server
Handle DHCP packets
• Port: 67 Protocol: UDP
_____________________________________________________
DNS
Handle DNS packets
• Port: 53 Protocol: TCP/UDP

DİĞERLERİ
Sertifika	CE, RoHS
Paket İeriği	• DR3220v-4G • Power Cord • Ethernet Cable • Phone Cable • Rubber Feet • SIM Card Eject Pin • Rackmount Kit • Antenna Extension Base • Quick Installation Guide
Sistem Gereksinimleri	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Ortam	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing
