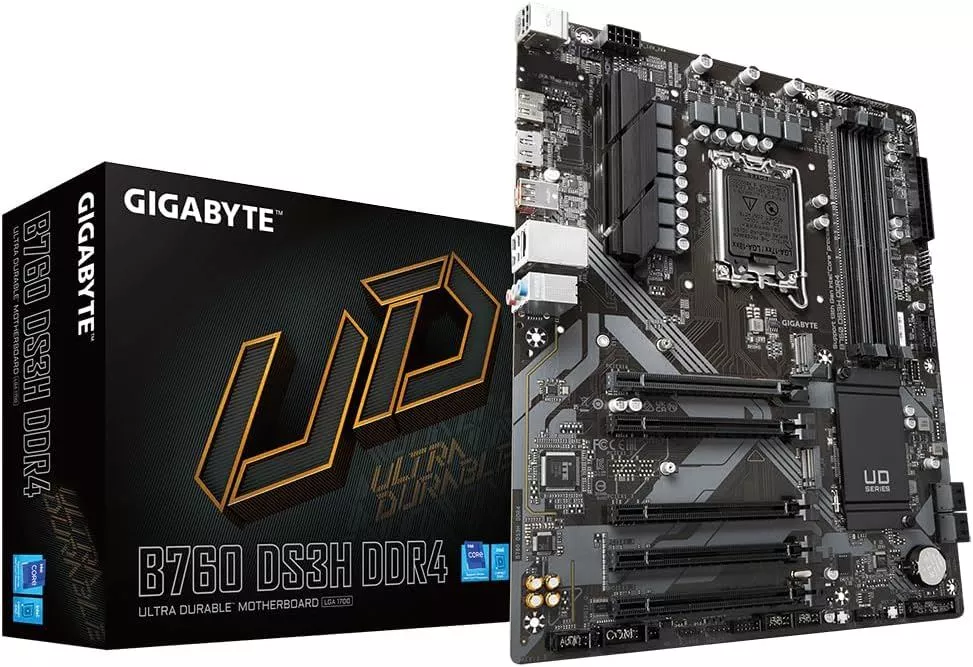

GIGABYTE B760 DS3H DDR4 HDMI TYPE-C DP PCIe 16X v4.0 1700p mATX
Satış Fiyatı:
8.034,99₺
Havale Fiyatı
- %5
7.633,24 ₺
Tek Çekim Fiyatı
8.034,99 ₺
Döviz Karşılığı
162,50 $
🏷️ Ürün fiyatlarına K.D.V. dahildir.
Dış Depo: 5'den Fazla
Hızlı Kargo
Güvenli Ödeme
Teknik Destek
İade Garantisi
SSL
VISA
MasterCard
3D Secure
Ürün Açıklaması
Teknik Bilgiler
| İşlemci Soket Tipi | 1700 |
| Chip Set | Intel B760 |
| Ram Slot Sayısı | 4 Adet |
| Max Ram Desteği | 128GB |
| RAM Tipi | DDR4 |
| Ram Frekans Hızı | 4266 MHz,4300 MHz,4400 MHz,4500 MHz,4600 MHz,4700 Mhz,4800 MHz,4933 MHz,4133 MHz,3666 MHz,5000 MHz,2400 MHz,3800 MHz,5133 MHz,3866 MHz,2133 MHz,3600 MHz,2666 MHz,2933 MHz,3000 MHz,3200 MHz,3300 MHz,3333 MHz,5333 MHz,3400 MHz,3466 MHz,4000 MHz |
| İşlemci Desteği | Intel Core i7,Intel Core i9,Intel Celeron,Intel Pentium,Intel Core i3,Intel Core i5 |
| Anakart Boyutu | Micro ATX |
| USB 3.2 | 5 Adet |
| USB 3.1 | Yok |
| USB 3.0 | Yok |
| USB 2.0 | 4 Adet |
| eSata | Yok |
| Bluetooth | Yok |
| PCI Express 4.0 x16 | 1 Adet |
| PCI Express 3.0 x16 | 1 Adet |
| PCI Express 2.0 x16 | Yok |
| PCI Express x16 | 1 Adet |
| PCI Express x1 | 1 Adet |
| PCI Slot | Yok |
| M.2 Slotu | 1 Adet |
| Sata 6Gb/s | 4 Adet |
| Sata 3Gb/s | Yok |
| D-Sub | Var |
| DVI | Yok |
| HDMI | Var |
| DP (Display Port) | Yok |
| Lan Hızı | 1 Gbit/100 Mbit |
| Lan Çıkış Sayısı | 2 Adet |
| Wireless Bağlantı | Yok |
| Ses Chip Set | Realtek ALC887 |
| Ses Kanal Sayısı | 7.1 Kanal |
| Görüş Açısı (Yatay / Dikey) | 160/140 |
| Satış Garanti Süresi (ay) | 24 |
| EAN | 4719331850746 |
Detaylı Bilgiler
| Kategori | Özellik |
|---|---|
| CPU | LGA1700 socket: Support for 12th/13th/14th Gen Intel® Core™, Pentium® Gold, Celeron® L3 cache varies with CPU (Refer "CPU Support List" for details) |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR DIMM sockets, up to 128 GB (32 GB per DIMM) DDR4 5333(O.C.) … 2133 MT/s Dual channel, ECC (non-ECC mode) & non-ECC support XMP support |
| Onboard Graphics | Intel® HD Graphics 1 x HDMI 4096x2160@60Hz (HDMI2.1, HDCP2.3) 1 x DisplayPort 4096x2304@60Hz (DP1.2, HDCP2.3) Up to 2 displays simultaneously |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel S/PDIF Out support (*configurable via software) |
| LAN | Realtek® GbE LAN (1G/100M) |
| Wireless | AMD Wi-Fi 6E RZ608 (BT 5.2), Intel Wi-Fi 6E AX210 & AX211 (BT 5.3), Realtek Wi-Fi 6E RTL8852CE (BT5.3) 2.4/5/6 GHz, 11ax support (*Actual data rate may vary by environment) |
| Expansion Slots | CPU: 1 x PCIe x16 (PCIe4.0 x16) Chipset: 4 x PCIe x16 (PCIe3.0 x1) |
| Storage Interface | CPU: 1 x M.2 (22110/2280 PCIe4.0 x4/x2) Chipset: 1 x M.2 (2280 PCIe4.0 x4/x2) 4 x SATA6Gb/s, RAID 0/1/5/10 support |
| USB | 1 x USB Type-C 3.2 Gen2x2 (back), 1 x USB Type-C 3.2 Gen1 (internal) 1 x USB3.2 Gen2 Type-A (red, back) 2 x USB3.2 Gen1 (internal), 8 x USB2.0/1.1 (back + internal) |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX12V CPU/system fan headers & water pump headers 2 x addressable LED, 2 x RGB LED 2 x M.2 Socket 3, 4 x SATA6Gb/s Front panel/audio/S/PDIF headers, USB headers, TPM header, serial port Q-Flash Plus, reset button/jumper, Clear CMOS |
| Back Panel Connectors | 1 x PS/2, 2 x SMA antenna, 1 x USB Type-C 3.2 Gen2x2 1 x USB3.2 Gen2 Type-A (red), 4 x USB2.0/1.1 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water flow, Fan fail, Fan speed control (*depends on installed fan/pump) |
| BIOS | 1 x 128 Mbit flash, AMI UEFI BIOS, PnP1.0a, DMI2.7, WfM2.0, SMBIOS2.7, ACPI5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus (*features may vary by model) |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX; 30.5cm x 24.4cm |
Teknik Bilgiler
| İşlemci Soket Tipi | 1700 |
| Chip Set | Intel B760 |
| Ram Slot Sayısı | 4 Adet |
| Max Ram Desteği | 128GB |
| RAM Tipi | DDR4 |
| Ram Frekans Hızı | 4266 MHz,4300 MHz,4400 MHz,4500 MHz,4600 MHz,4700 Mhz,4800 MHz,4933 MHz,4133 MHz,3666 MHz,5000 MHz,2400 MHz,3800 MHz,5133 MHz,3866 MHz,2133 MHz,3600 MHz,2666 MHz,2933 MHz,3000 MHz,3200 MHz,3300 MHz,3333 MHz,5333 MHz,3400 MHz,3466 MHz,4000 MHz |
| İşlemci Desteği | Intel Core i7,Intel Core i9,Intel Celeron,Intel Pentium,Intel Core i3,Intel Core i5 |
| Anakart Boyutu | Micro ATX |
| USB 3.2 | 5 Adet |
| USB 3.1 | Yok |
| USB 3.0 | Yok |
| USB 2.0 | 4 Adet |
| eSata | Yok |
| Bluetooth | Yok |
| PCI Express 4.0 x16 | 1 Adet |
| PCI Express 3.0 x16 | 1 Adet |
| PCI Express 2.0 x16 | Yok |
| PCI Express x16 | 1 Adet |
| PCI Express x1 | 1 Adet |
| PCI Slot | Yok |
| M.2 Slotu | 1 Adet |
| Sata 6Gb/s | 4 Adet |
| Sata 3Gb/s | Yok |
| D-Sub | Var |
| DVI | Yok |
| HDMI | Var |
| DP (Display Port) | Yok |
| Lan Hızı | 1 Gbit/100 Mbit |
| Lan Çıkış Sayısı | 2 Adet |
| Wireless Bağlantı | Yok |
| Ses Chip Set | Realtek ALC887 |
| Ses Kanal Sayısı | 7.1 Kanal |
| Görüş Açısı (Yatay / Dikey) | 160/140 |
| Satış Garanti Süresi (ay) | 24 |
| EAN | 4719331850746 |
Detaylı Bilgiler
| Kategori | Özellik |
|---|---|
| CPU | LGA1700 socket: Support for 12th/13th/14th Gen Intel® Core™, Pentium® Gold, Celeron® L3 cache varies with CPU (Refer "CPU Support List" for details) |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR DIMM sockets, up to 128 GB (32 GB per DIMM) DDR4 5333(O.C.) … 2133 MT/s Dual channel, ECC (non-ECC mode) & non-ECC support XMP support |
| Onboard Graphics | Intel® HD Graphics 1 x HDMI 4096x2160@60Hz (HDMI2.1, HDCP2.3) 1 x DisplayPort 4096x2304@60Hz (DP1.2, HDCP2.3) Up to 2 displays simultaneously |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel S/PDIF Out support (*configurable via software) |
| LAN | Realtek® GbE LAN (1G/100M) |
| Wireless | AMD Wi-Fi 6E RZ608 (BT 5.2), Intel Wi-Fi 6E AX210 & AX211 (BT 5.3), Realtek Wi-Fi 6E RTL8852CE (BT5.3) 2.4/5/6 GHz, 11ax support (*Actual data rate may vary by environment) |
| Expansion Slots | CPU: 1 x PCIe x16 (PCIe4.0 x16) Chipset: 4 x PCIe x16 (PCIe3.0 x1) |
| Storage Interface | CPU: 1 x M.2 (22110/2280 PCIe4.0 x4/x2) Chipset: 1 x M.2 (2280 PCIe4.0 x4/x2) 4 x SATA6Gb/s, RAID 0/1/5/10 support |
| USB | 1 x USB Type-C 3.2 Gen2x2 (back), 1 x USB Type-C 3.2 Gen1 (internal) 1 x USB3.2 Gen2 Type-A (red, back) 2 x USB3.2 Gen1 (internal), 8 x USB2.0/1.1 (back + internal) |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX12V CPU/system fan headers & water pump headers 2 x addressable LED, 2 x RGB LED 2 x M.2 Socket 3, 4 x SATA6Gb/s Front panel/audio/S/PDIF headers, USB headers, TPM header, serial port Q-Flash Plus, reset button/jumper, Clear CMOS |
| Back Panel Connectors | 1 x PS/2, 2 x SMA antenna, 1 x USB Type-C 3.2 Gen2x2 1 x USB3.2 Gen2 Type-A (red), 4 x USB2.0/1.1 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water flow, Fan fail, Fan speed control (*depends on installed fan/pump) |
| BIOS | 1 x 128 Mbit flash, AMI UEFI BIOS, PnP1.0a, DMI2.7, WfM2.0, SMBIOS2.7, ACPI5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus (*features may vary by model) |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX; 30.5cm x 24.4cm |
